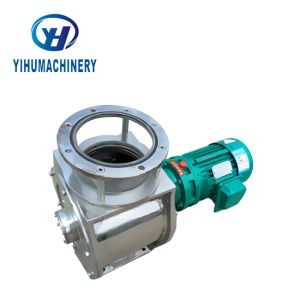

    Adjustable Speed Rigid Grain Impeller Feeder Conveyor System Structure

    Ask Lasest Price
    Brand Name : OEM
    Supply Ability : 100 Set/Sets per Month
    Price : $1,300.00~$4,300.00 set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Adjustable Speed Rigid Grain Impeller Feeder Conveyor System Structure

    Adjustable Speed Rigid Grain Impeller Feeder Conveyor System Structure

    Product Description

    Valve Rigid Impeller Feeder is famous as it can feed dry materials such as powder or small particles from the upper bin to the feeding equipment continuously. It is an auxiliary conveyor device, and it is widely used as feeding equipment for a materials system in building materials, chemicals, metallurgy and light industries. Our value-rigid impeller feeder is assembled by a shell, impeller, end cover of the main shaft and so on.

    Rigid impeller feeder, also known as rotary feeder, ventilator, star unloader, is a rotor with several blades in the cylindrical housing rotation, from the upper hopper into the material, filled in the space between the blades, with the blade rotation and discharge.


    Product Details

    Adjustable Speed Rigid Grain Impeller Feeder Conveyor System Structure

    Model

    Capacity(m3/h)


    Speed(r/min)


    Reducer model

    XJ 150×1502

    31

    Y801-4
    XJ 200×200

    7

    Y802-4

    XJ 300×300

    23

    Y90S-4

    XJ 400×400

    53

    Y90L-4

    XJ 500×500106Y100L1-4

    Working Principle

    Value Rigid Impeller Feeder is equipped with an YCT speed reducer. And it connects the main shaft with the output shaft rigidly, driving the main shaft and impeller to rotate. The main shaft and impeller rotate simultaneously with the motor’s rotating on the impeller. By the way, the impeller is assembled by adjustable blades with abrasion resistance and the clearance between the impeller and the casing can be adjusted.

    Company Information

    Xinxiang Yihu Machinery Equipment Co.,Ltd is an innovative enterprise integrated with technology research, manufacture and trade. Our enterprise is professional in Conveyor, hoist, vibrating screen, feeding machine, mixer, dust–proof equipment etc. We can provide you with professional design to meet your needs.
