    Powder Screening Machine Quartz Air Classifier Classifying Wheel

    Ask Lasest Price
    Brand Name : YIHU
    Supply Ability : 10 Set/Sets per Month
    Price : $1500~8800 Set
    Certification : CE
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram
    • Product Details
    • Company Profile

    Powder Screening Machine Quartz Air Classifier Classifying Wheel

    Powder Screening Machine Quartz Air Classifier Classifying Wheel

    Product Description

    YAF series vertical air classifier is my company independent research and development of a new type of grading equipment, specifically for the material of ultrafine classification, can also be used with various crushing equipment (vibration mill and roller mill, Raymond mill) form a complete set of ultra-fine powder processing production line, all kinds of powder is prepared. The YAF series vertical airflow classifier is suitable for the classification of superfine powder dry method, especially for the classification of large industrial products.


    Product Details

    Powder Screening Machine Quartz Air Classifier Classifying Wheel


    ModelCapacity(t/h)Size(um)Efficiency(%)Power(kw)
    YAF0500.1~0.52~10070-8525-30
    YAF1000.5~1.041-48
    YAF20010.~3.063-73
    YAF4002.0~8.097-120
    YAF6005.0~15140-169
    YAF80010~25200-250
    YAF100020~50250
    The machine can customized according your require!!!

    Powder Screening Machine Quartz Air Classifier Classifying Wheel


    Powder Screening Machine Quartz Air Classifier Classifying Wheel

    Working Principle

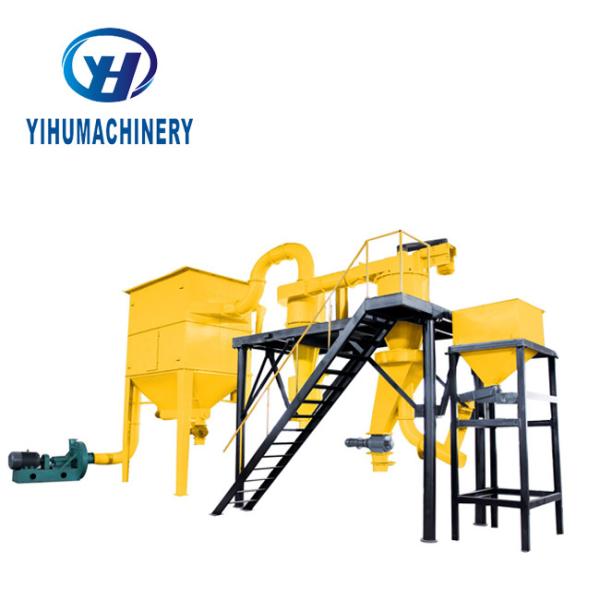

    The classifying device is composed of air classifier ,cyclone,pulse dust collector high pressure fan,control cabinet and so on.Equipped with second air inlet and vertical inpeller rotor ,the materials are fed in visa the bottom roller under the force generated from the high pressure fan and then mixed with first input air to disperse particle and then brought to classifying zone. owing to the high rotary speed of classifying rotor and centripetal force generated fron high pressure fan .When the centrifugal force is stronger than the centripetal force,the coarse particles fall down along inside roller.the second air is induced to sieve the coarse material and separate the fine powder are collected by the cyclone and pulse dust collector.

    Company Information

    Xinxiang Yihu Machinery Equipment Co.,Ltd is an innovative enterprise integrated with technology research, manufacture and trade. Our enterprise is professional in Conveyor, hoist, vibrating screen, feeding machine, mixer, dust–proof equipment etc. We can provide you with professional design to meet your needs.
